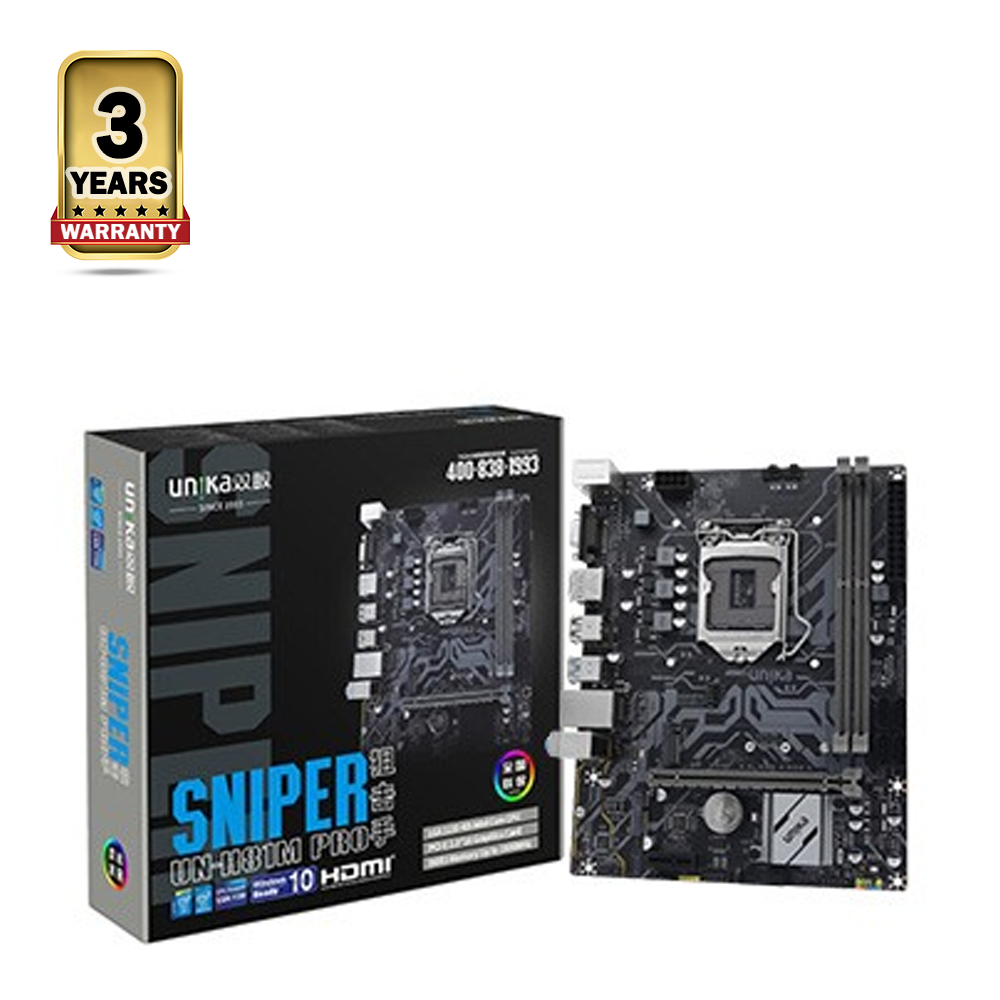

Unika Un-H81M Pro M.2 V1.0 Micro ATX Motherboard
Category: Motherboards |Brand: Individual Collection
Specifications:
- Product Type :
- Motherboard
- Model :
- UN-H81M PRO M.2 V1.0
- Warranty :
- 3 years
- Supported CPU :
- Intel Core i7/i5/i3/Pentium/Celeron LGA1150 (support Intel 22nm processor)
- Chipset :
- Intel H81
- Memory Size :
- 16 GB
- Memory Slot :
- 2 x DDR3 memory slots
- Memory type and memory module) :
- DDR3 1600/1333/1066 memory* (actual memory data transfer speed depends on processor
- Audio :
- Onboard Realtek ALC897 high-fidelity audio independent sound card
- LAN :
- Onboard Realtek 8111H Gigabit network card; 1 x M.2 wifi interface
- Platform :
- Intel Platform
- Output Interface :
- 1 x DisplayPort display output; 1 x HDMI display output; 1 x VGA display output
- PCI Card Slot :
- 1 x PCI-E x 16 graphics card slot; 1 x PCI-E x 1 slot
- Interface :
- 4 x SATA3.0 6Gb/s M.2 Interface: 1 x M.2 slot, supports 2242/2260/2280 type storage devices
- Power Connector :
- 24pin+8pin
- USB :
- 2 x USB 3.0 ports at the rear; 4 x USB 2.0 ports; 1 x USB 3.0 header at the front, 2 USB 3.0 ports can be expanded; 1 x USB 2.0 header, 2 USB 2.0 ports can be expanded
- Form Factor :
- M-ATX
- Dimension :
- 170mm x 220mm
- Other Features :
- 1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x RJ45 network port; 3 x 3.5mm audio ports
Buy From
Description
The UNIKA UN-H81M PRO M.2 V1.0 DDR3 Micro ATX Motherboard supports Intel's 4th generation Core i7, i5, i3, Pentium, and Celeron processors with an LGA1150 socket. Built on the Intel H81 chipset, it features two DDR3 memory slots supporting speeds of 1600, 1333, and 1066 MHz, with a maximum capacity of 16 GB. The motherboard includes one PCI-E x16 slot for graphics cards and one PCI-E x1 slot. For storage, it provides four SATA3.0 ports and one M.2 slot that supports 2242/2260/2280 type storage devices. Connectivity options are robust, with rear USB 3.0 and 2.0 ports, as well as headers for additional USB ports. Display outputs include DisplayPort, HDMI, and VGA. It also has an onboard Realtek 8111H Gigabit network card and Realtek ALC897 high-fidelity audio chip. Additional features include PS/2 ports, RJ45 network port, and various audio ports.
